Selecting the wrong grain conveyor belt carries massive operational risks for processing facilities. You face premature equipment wear, severe product degradation, or even catastrophic combustible dust incidents. Facility managers simply cannot afford guesswork when moving high volumes of agricultural bulk materials daily. Harvest seasons operate under intense pressure, demanding continuous reliability from every component. This guide provides an objective, engineering-first framework for evaluating belt specifications, ensuring safety compliance, and optimizing maintenance logistics. We focus on matching material properties to physical system constraints for long-lasting, reliable performance. You will learn how to define baseline operating parameters and select appropriate rubber cover compounds. We also explore non-negotiable safety standards and essential carcass designs. Our goal is to equip engineers and plant operators with the exact criteria needed to finalize technical specifications and confidently shortlist qualified suppliers.
Compound matching is critical: Selecting the right cover compound (like MOR or SOR) prevents belt swelling and degradation from oily grains like soybeans.
Safety dictates the baseline: Static Conductive and Flame Retardant (SCFR) properties are non-negotiable for mitigating grain dust explosion risks.
Spec for actual, not theoretical, capacity: Accurate calculation of operating tension (PIW) and belt speed prevents system overloads and excess material damage.
TCO goes beyond the purchase price: Splicing methods and maintenance accessibility significantly impact the lifetime ROI of a grain conveyor.
Establishing the foundation for a reliable Grain Conveyor Belt requires precise operational data. You must evaluate throughput targets alongside physical facility limits. Ignoring these foundational metrics often leads to poorly specified equipment and constant operational bottlenecks.
Engineers calculate capacity in bushels-per-hour (BPH). You face a direct trade-off when configuring belt speed and width. A narrow belt must run faster to achieve the same BPH as a wider belt. However, high speeds introduce severe risks. Fast-moving grain impacts transfer chutes forcefully. This impact fractures kernels and creates excessive dust. We recommend specifying a wider belt running at a slower speed. Slower operation ensures gentler grain handling. It reduces dust generation significantly. It also extends the lifespan of your mechanical components, despite requiring a larger initial footprint.
Physical constraints dictate specific belt flexibilities. Evaluate your incline angles carefully. Steep angles often require belts equipped with cleats or chevron profiles to prevent material rollback. Next, measure your loading zone drop heights. High drop distances impart immense kinetic energy into the belt. You will need thicker top covers or impact idlers to absorb this shock. Finally, measure your pulley diameters. Thick belts wrapping around small pulleys experience severe bending stress. This stress causes the rubber covers to crack and the splices to fail prematurely.
Your geographic location heavily influences compound selection. Facilities experiencing extreme seasonal temperature fluctuations demand specialized engineering. Standard rubber compounds harden during sub-zero winters. Brittle rubber cracks over the pulleys. Conversely, extreme summer heat softens the rubber. Soft rubber wears quickly against abrasive grains. Always specify operating temperature ranges clearly when consulting manufacturers. They can adjust the polymer mix to maintain flexibility across your specific environmental conditions.
The internal structure of the belt determines its ultimate success. The outer rubber protects the belt, but the inner fabric carries the load. You must calculate operational tension accurately to specify the right carcass.
Engineers measure operating tension in Pounds per Inch of Width (PIW). This metric defines the exact tensile strength required to move fully loaded grain. Accurate PIW calculations prevent excessive belt stretch. If a belt stretches too much, it slips on the drive pulley. Slippage generates dangerous friction and heat. Always calculate PIW based on fully loaded startup conditions. Starting a loaded system requires significantly more force than running an empty system. Proper PIW specification guarantees smooth, continuous operation.
The carcass acts as the structural skeleton. Modern designs utilize polyester warp threads and nylon weft threads (often called EP fabric). Polyester provides low stretch characteristics. Nylon provides excellent troughability and transverse flexibility. You must choose between single-ply or multi-ply constructions.
Single-ply straight warp: Offers high puncture resistance and excellent flexibility.
Multi-ply construction: Uses multiple layers of fabric bound by rubber skims. It provides exceptional fastener-holding strength for heavy-duty applications.
The carcass must support the grain load without sagging excessively between idlers. It must also grip mechanical fasteners tightly to prevent splice pull-outs.
Many operators mistakenly believe stronger is always better. Purchasing an excessively high-tension belt creates distinct mechanical problems. A 600 PIW belt installed on a system designed for 200 PIW becomes far too rigid. The belt resists troughing. It fails to sit properly in the idlers. This rigidity causes severe tracking issues. The belt wanders side to side, destroying its edges against the conveyor frame. Specify exactly what you need based on accurate engineering formulas.
Different agricultural products interact uniquely with rubber polymers. The outer cover compound must resist specific chemical and physical attacks from the material handled.
Standard grade rubber works perfectly for dry crops. Wheat, barley, and dry corn pose minimal chemical threats. However, oil-heavy crops demand entirely different chemistry. Soybeans, canola, and sunflower seeds release natural oils and terpenes during transport. These oils attack standard rubber aggressively. The rubber absorbs the oil and swells. Swelling causes the edges to cup upward. Eventually, the cover delaminates from the internal fabric carcass.
To process oily grains, you must select Moderately Oil Resistant (MOR) or Super Oil Resistant (SOR) compounds. MOR handles occasional oil exposure or lightly processed feeds. SOR is strictly necessary for crushing facilities or direct handling of high-oil seeds.
Table: Cover Compound Comparison Guide
Compound Type | Primary Application | Resistance Characteristics | Typical Grains Handled |
|---|---|---|---|
Standard Grade 2 | General agricultural transport | Excellent weather and ozone resistance | Dry corn, wheat, barley, oats |
MOR (Moderate Oil) | Mixed feed, moderate oil exposure | Resists light terpenes and animal fats | Treated seeds, mixed grains, wood pellets |
SOR (Super Oil) | Heavy oil and crushing plants | Prevents severe swelling and cupping | Soybeans, canola, sunflower seeds, flax |
White Nitrile (FDA) | Direct food processing | Food safe, highly oil-resistant | Milled flour, human-grade rice, sugar |
Consider the physical abrasiveness of your materials. Rice hulls contain high levels of silica. They act like sandpaper against the cover. Mixed animal feeds often contain sharp mineral additives. For abrasive applications, you must specify thicker top covers. A standard 1/16-inch cover might wear through in months. Upgrading to a 1/8-inch or 3/16-inch top cover provides a sacrificial wear layer. This simple upgrade extends operational life drastically.
Direct human-consumption processing changes the rules completely. You cannot use standard industrial black rubber. You must utilize FDA-approved compounds. White nitrile is the industry standard. It resists oils, cleans easily, and leaves no dark scuff marks on the product. Ensure your supplier provides certified documentation proving compliance with current food safety regulations.
Grain dust is highly explosive. A compliant grain conveyor must integrate specialized safety features to protect the facility and personnel.
Static Conductive and Flame Retardant (SCFR) belting serves as the absolute baseline for elevator safety. Moving belts generate immense static electricity as they pass over pulleys and idlers. In a dusty environment, a single static spark can ignite a catastrophic explosion. SCFR belts contain specialized carbon black formulations. These formulations safely dissipate static charges into the grounded conveyor frame. Furthermore, the flame-retardant properties ensure the belt self-extinguishes if a friction fire occurs. The belt will not act as a fuse spreading fire between different silos.
Governing bodies enforce strict regulations regarding combustible dust. In the United States, OSHA standards dictate severe penalties for non-compliance in explosive environments. In Europe, ATEX directives mandate rigorous equipment certifications. Your chosen specifications must align perfectly with these regional regulations. Ignoring them risks facility closures, massive fines, and fatal accidents.
Do not rely on verbal assurances or vague marketing brochures. Demand official manufacturer testing data. Request current compliance certificates for every roll delivered. Engineers must verify ISO test standards for both electrical resistance and flammability. Proper documentation protects your facility during safety audits and insurance inspections.
Not all agricultural products tolerate standard transport methods. High-value materials require highly specialized handling strategies.
Seed stock represents significant financial investment per bushel. Preserving structural integrity is paramount. Mechanical damage ruins germination rates instantly. Standard high-speed systems bounce seeds aggressively against metal chutes. To protect seed stock, operators must utilize deeply troughed idlers, minimal drop heights, and heavily cushioned impact zones. Slowing down the speed while maximizing the load cross-section provides the gentlest ride possible.

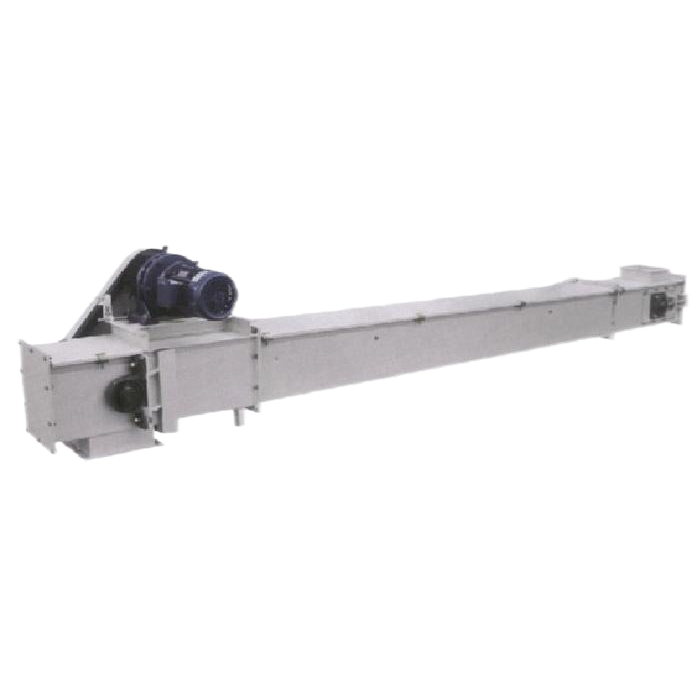

Sometimes, absolute minimal degradation remains the primary success criterion. In these scenarios, you should contrast traditional open systems against enclosed alternatives. Tubular drag or cable systems move material slowly inside a sealed tube. They generate zero dust and virtually eliminate mechanical crushing. However, they cannot match the massive volumetric capacity of an open troughed system. Engineers must balance the necessity for gentle handling against the facility's daily tonnage requirements.
Procuring the equipment represents only the first phase. Long-term reliability depends entirely on effective maintenance strategies, accessible inventory, and robust technical support.
Connecting the two ends of the belt requires careful consideration. You generally choose between mechanical fasteners and vulcanization. Mechanical splices use metal hinges and rivets. Maintenance teams install them quickly using basic hand tools. They limit downtime during emergencies. However, metal fasteners allow fine dust to sift through the joint. They also wear out quicker under heavy loads.
Vulcanization binds the rubber chemically using heat and pressure. It creates a seamless, exceptionally strong joint. Vulcanization prevents dust leakage and operates smoothly over scrapers. High-tension systems almost always require vulcanized splices. Consider your internal maintenance capabilities when deciding between these methods.
Harvest season waits for no one. An unexpected equipment failure in October demands immediate action. Supplier reliability becomes your most valuable asset. Assess potential suppliers based on their local stocking options. Do they hold emergency replacement stock nearby? Can they ship custom-cut lengths within 24 hours? Partnering with a supplier who maintains robust regional inventory minimizes catastrophic downtime.
Evaluate manufacturer warranties meticulously. Standard warranties often cover gross manufacturing defects but exclude typical wear. Does the warranty cover splice failures? What happens if edge fraying occurs prematurely? Furthermore, prioritize suppliers offering on-site engineering assessments. A supplier who sends technicians to inspect tracking alignment and pulley lagging provides significantly more value than one who merely ships a roll of rubber.
Selecting the optimal specification requires a methodical, engineering-based approach. You must prioritize safety above all else by mandating SCFR properties in combustible environments. Next, match the chemical compound strictly to the grain type, utilizing MOR or SOR for oil-producing crops. Calculate operating tensions precisely to specify the correct internal carcass strength, avoiding the pitfalls of over-specification. Finally, evaluate the logistical capabilities of your suppliers, ensuring rapid access to inventory and reliable splicing solutions. By adhering to this objective framework, facility managers can eliminate guesswork, maximize operational uptime, and secure reliable material handling throughout the most demanding harvest seasons. We strongly encourage plant engineers to request comprehensive site audits and review detailed technical data sheets before finalizing any procurement decisions.
A: Average lifespans range from 3 to 10 years. Longevity depends heavily on annual tonnage, correct compound selection, and rigorous maintenance schedules. Systems moving highly abrasive materials or operating with misaligned pulleys will experience significantly shorter lifespans. Regular inspections extend operational life drastically.
A: You must specify an SOR compound when handling crushed oilseeds, or when transporting high volumes of soybeans, canola, and sunflower seeds. The concentrated natural oils and terpenes in these crops cause standard rubber covers to swell, cup, and delaminate rapidly.
A: Improper tracking usually stems from uneven loading, where grain hits one side off-center. Other primary causes include misaligned idlers, material buildup on the tail pulley, or utilizing a belt too rigid for the system structure, which prevents it from seating properly.
A: No. Mechanical splices have distinct tension limits and require specific minimum pulley diameters to prevent fastener pull-out. While excellent for low-to-medium tension applications, high-capacity, high-tension systems generally require vulcanized splicing for sufficient joint strength and seamless operation.
