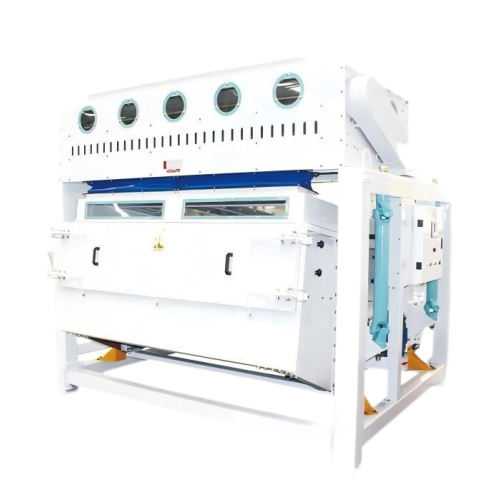

The Rotary Vibrating Cleaner Grain Processing Machinery sets a new standard for pre-processing and purification in grain handling operations, combining rotational motion with precise vibration to achieve superior impurity removal across a wide range of grains. This versatile cleaning equipment delivers processing capacities from 5 to 15 tons per hour, making it suitable for small to medium-scale food processing facilities, seed operations, and agricultural cooperatives seeking to improve grain quality before further processing.
Unlike conventional stationary cleaners, this rotary vibrating system creates multi-dimensional motion that agitates grains thoroughly while maintaining gentle handling to minimize breakage. The result is a cleaning efficiency of 99% for large impurities, 98% for medium contaminants, and 97% for fine particles—significantly reducing wear on downstream processing equipment while improving end-product quality. Its compact design (3.2m × 2.1m × 2.4m) allows easy integration into existing processing lines with minimal modifications.
The unique combination of rotational movement (300-350 rpm) and vertical vibration (2-3 mm amplitude) creates a fluid bed effect that separates impurities based on size, density, and aerodynamic properties. This multi-dimensional action ensures more thorough cleaning than either rotation or vibration alone can achieve.
Three independently adjustable sieve layers with specialized aperture designs perform sequential cleaning: the top layer removes large impurities (stalks, stones), the middle layer separates medium contaminants and undersized grains, and the bottom layer captures fine particles and dust. Each sieve features quick-release clamps for easy replacement, with aperture sizes ranging from 0.5-12mm to accommodate different grains.
A 3-5 kW variable frequency drive allows operators to adjust both rotation speed and vibration intensity, optimizing cleaning performance for different grain types and contamination levels. The touchscreen interface includes 10 preset programs for common grains like rice, wheat, corn, and soybeans, with customizable settings stored for specialty products.
A high-efficiency dust extraction system captures airborne particles generated during cleaning, reducing workplace dust levels by 92% and meeting strict environmental and occupational health standards. The closed-loop design prevents cross-contamination between batches and minimizes product loss through dust entrainment.
Installed at the receiving point of grain handling facilities, the cleaner removes field debris and contaminants before storage or further processing, protecting storage equipment from damage and preventing spoilage caused by impurity-related moisture retention.
In food processing facilities, the cleaner removes potential contaminants that could compromise food safety, including stones, metal particles, and foreign seeds, helping operations meet regulatory requirements for product purity and safety.
The optimal screen angle varies by grain type: rice processes best at 12°, wheat at 10°, corn at 15°, and small seeds at 8°. The cleaner features quick-adjustment levers that allow angle modifications in 2° increments without tools, enabling operators to fine-tune performance for different materials.
Under normal operating conditions, sieve lifespan averages 6-8 months for standard grains. For abrasive materials or continuous operation, replacement every 4-5 months is recommended. The quick-change design allows complete sieve replacement in less than 30 minutes for all three layers.
The cleaner performs optimally with grain moisture levels between 10-16%. For grains with moisture above 16%, the optional high-moisture kit modifies vibration parameters and adds anti-clogging features, allowing processing with minimal efficiency loss. Grains exceeding 18% moisture should be dried before cleaning to prevent sieve clogging.
