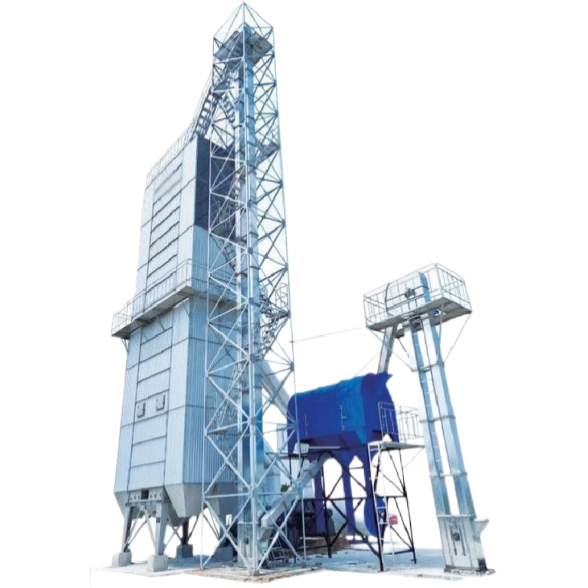

Continuous Type Fully Galvanized Grain Drying Tower

Product Overview

The Continuous Type Fully Galvanized Grain Drying Tower represents the pinnacle of industrial grain drying technology, designed for high-volume, uninterrupted operation in large-scale agricultural and food processing facilities. Constructed entirely with galvanized steel components, this drying tower offers exceptional durability and corrosion resistance, ensuring reliable performance even in harsh environmental conditions. With a continuous processing capacity ranging from 100 to 500 tons per day, it provides a seamless drying solution for grain producers and processors requiring consistent, high-quality results.

Unlike batch dryers, this continuous-flow system allows for non-stop operation, with grains entering at the top and progressing through multiple drying stages before exiting as uniformly dried product at the bottom. This design eliminates downtime between batches, maximizing productivity during critical harvest periods when drying capacity is most needed.

Product Features

Full Galvanized Construction

Every structural component, including the drying chambers, conveyors, and support structures, is constructed from hot-dip galvanized steel with a zinc coating thickness of 85-100 microns. This corrosion-resistant design extends the tower's service life to 20 years or more, even in humid or coastal environments, reducing long-term maintenance and replacement costs.

Multi-Stage Drying Process

The tower incorporates a series of drying zones with progressively controlled temperatures, starting with a high-temperature zone (up to 120°C) for initial moisture removal, followed by medium and low-temperature zones (50-80°C) for final drying. This staged approach ensures effective moisture removal while limiting grain temperature to below 55°C, preserving grain quality and minimizing thermal damage.

Advanced Automation System

A fully integrated PLC control system with touchscreen interface monitors and adjusts all drying parameters in real-time, including air temperature, humidity, grain flow rate, and residence time. The system features predictive algorithms that optimize energy usage based on incoming grain moisture, reducing fuel consumption by 10-15% compared to conventional drying towers.

Energy-Efficient Heat Recovery

The drying system incorporates a heat exchanger that recovers waste heat from exhaust air, pre-heating incoming fresh air and reducing overall energy requirements. This feature is particularly effective in cold climates, where it can reduce fuel consumption by up to 25% during winter operations.

Product Applications

Large-Scale Grain Production Centers

In major agricultural regions with high grain yields, this continuous dryer handles the massive volumes produced during harvest seasons, ensuring timely drying to prevent spoilage. Its high capacity makes it ideal for cooperative grain facilities serving multiple farmers.

Commercial Grain Storage Facilities

Grain elevators and storage terminals utilize these towers to prepare incoming grain for long-term storage, reducing moisture levels to the optimal range (12-14% for most cereals) that prevents mold growth and insect infestation during extended storage periods.

Integrated Food Processing Complexes

In facilities where grain processing is integrated with milling, brewing, or other food production, the continuous dryer provides a steady supply of uniformly dried grain to downstream processing equipment, ensuring consistent product quality and production efficiency.

FAQ

How does the continuous drying process ensure uniform moisture content?

The tower utilizes a combination of controlled airflow, uniform grain distribution, and adjustable residence time to achieve moisture uniformity of ±0.5% across the entire product stream. Sensors located at the discharge point continuously monitor moisture levels, with the PLC system making real-time adjustments to air temperature and grain flow rate to maintain target moisture content.

What fuel options are available for the drying system?

The tower can be configured to use various fuel sources including natural gas, propane, diesel, and biomass. The burner system is modular, allowing for easy conversion between fuel types if needed. A dual-fuel option is also available, enabling automatic switching between fuels based on cost or availability.

What maintenance is required for the galvanized components?

The galvanized surfaces require minimal maintenance beyond periodic cleaning to remove dust and debris accumulation. Inspections should be conducted annually to check for any damage to the galvanized coating, particularly in high-wear areas. Minor touch-ups can be performed using zinc-rich paint if any coating damage is detected, ensuring continued corrosion protection.
