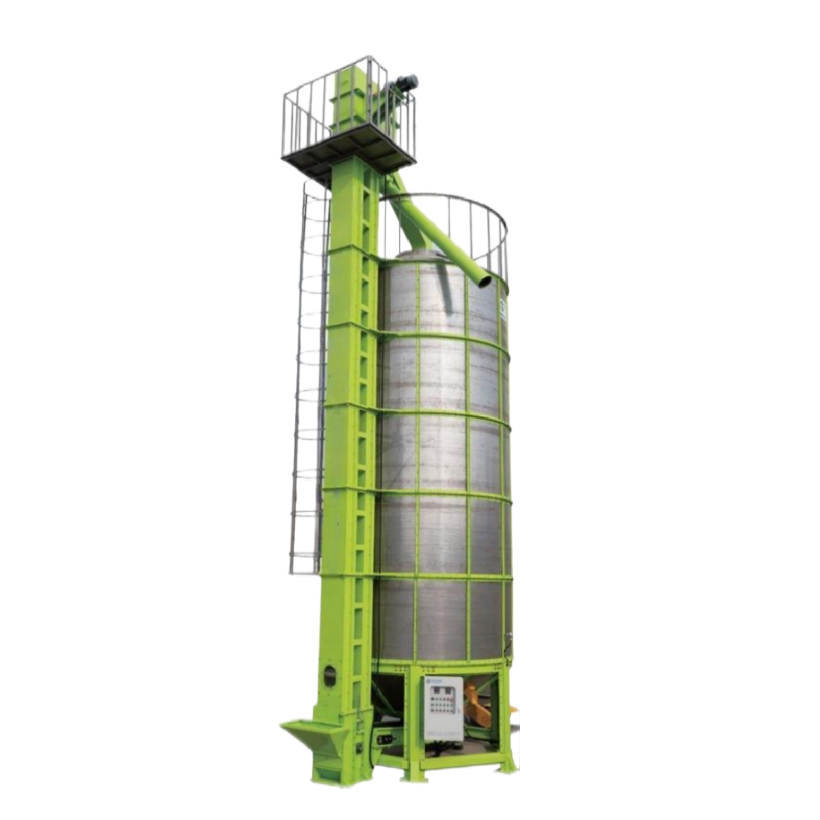

The DRYING MACHINE(5HP-20) Food Processing Equipment stands as a versatile mid-capacity drying solution engineered for small to medium-scale food processing facilities and agricultural cooperatives. Powered by a robust 5 HP motor, this stationary drying system delivers a daily processing capacity of 20 tons across various grains, including wheat, corn, rice, and oilseeds. Its compact design and multi-fuel compatibility make it an essential asset for operations requiring reliable moisture control without the high energy costs of larger industrial systems.
| Availability: | |
|---|---|
| Quantity: | |
Model | 5HP-20 |
Dimension(mm)L*W*H | 5700*2975* 10700 |
Moisture reduction rate(%/h) | 1.0-2.2 |
Power(kw) | 27.2 |
Capacity(t) | 20.1 |
The structural form | batch recirculator |
Drying process | cross-mixed flow |
Drying method | direct heating |
Heat power(kj/h) | 2520000 |
Unlike mobile drying units, this stationary model features a fixed installation with optimized air circulation, achieving uniform moisture reduction from initial levels down to 12-14%—the ideal range for safe storage and further processing. The machine's modular construction allows for easy integration into existing processing lines, providing a seamless transition from harvest to storage or milling operations.
Equipped with a proprietary heat exchanger design, the dryer achieves a thermal efficiency rating of 88%, converting fuel energy into effective drying heat with minimal waste. This efficiency translates to lower operational costs, consuming approximately 50-70 kg of coal or 35-45 m³ of natural gas per ton of processed grain, depending on initial moisture content.
The drying chamber features five horizontally arranged air distribution plates with adjustable louvers, ensuring uniform airflow of 1.5-2.0 m/s across the grain bed. This design eliminates moisture gradients within the batch, achieving a drying uniformity of ±0.8% across the entire output volume.
A microprocessor-based control system maintains precise drying temperatures between 40-60°C, with separate settings for different grain types. The system includes over-temperature protection that automatically reduces heat input if temperatures exceed safe thresholds, preventing thermal damage to grains.
The drying chamber is constructed from 304 stainless steel with a corrosion-resistant coating, ensuring hygienic operation and extending service life to 10 years or more under normal operating conditions. Removable perforated trays facilitate easy cleaning and maintenance access.
Rural grain storage centers utilize this dryer to prepare harvested grains for medium-term storage, preventing mold growth and insect infestation by reducing moisture to safe levels before silo storage.
Agricultural cooperatives serving multiple smallholder farmers benefit from the machine's ability to process various grains, providing consistent drying services that improve crop quality and market value for their members.
Integrated into rice and flour milling operations, the dryer conditions grains to optimal moisture levels before milling, reducing breakage during processing and improving overall milling efficiency by 10-15%.
The machine requires a minimum floor area of 4m × 3m for the main unit, plus additional space of approximately 2m × 2m for auxiliary equipment (fuel storage, control panel). The installation height requirement is 3.5 meters to accommodate air circulation and maintenance access.
Drying time varies based on initial moisture content and grain type. For rice with initial moisture of 22-24%, the cycle takes approximately 4-5 hours to reach 14% moisture. Wheat with initial moisture of 18-20% typically requires 3-4 hours. The control system includes automatic cycle completion based on real-time moisture readings.
Yes, the modular burner design allows conversion between coal, natural gas, and diesel fuel systems. Conversion kits are available that allow technicians to switch fuel sources within 8 hours. The control system automatically adjusts operating parameters when fuel type is changed via the interface.
This high efficientrotary vibrating cleaning machine has gathered differentfunctions in one, can efficiently remove different sizes'impurities.
Use screw rollerfeeding device, The full width of the screen surface is uniform, with step-less output capacity adjustment, digital display, simple and intuitive.
Airtight de-dust device, with less dust.
Use cardan flexible suspension system,which makes the machine work smoothly.
The cardan is durable, machine performs verystable.
Onelayer with brush cleaning structure, can automatically clean outimpurities.
Output capacity of single machineis big.
The ROTARY CLEANING MACHINE is a high-performance cleaning equipment under the Rice Mill Machine category, designed by Golden-Cereal™ to efficiently remove impurities from grains during processing. As a core component in grain processing lines, it plays a critical role in enhancing grain purity, ensuring downstream processing (such as husking, whitening, or grading) operates smoothly.
Unique selection chamber to separate stones from grain,especially errective for brown rice.
Unique sieve structure to save blowing rate.
Negative-pressure air suctionto prevent dust from escaping the machine.
Equipped with three main models—TQSX85B, TQSX100B, and TQSX125A—the machine caters to diverse production scales, with capacity ranging from 3.5-4.5 t/h to 7-8.5 t/h. Its advanced design ensures exceptional performance in removing impurities, especially for sensitive grains like brown rice, where preserving grain integrity is critical. Whether integrated into small rice mills or large-scale grain processing plants, this destoner enhances product quality by reducing impurity levels to below 0.1%, meeting international food safety standards.
Ideal for modern agricultural processing facilities, it integrates pneumatic technology with robust engineering to deliver consistent performance across varying operational scales. Whether deployed in small rural mills or large industrial complexes, this husker ensures high husking rate (up to 98%) and low grain damage (below 2%), making it a cornerstone for businesses prioritizing quality and productivity. Its adaptability to diverse paddy varieties and climates further solidifies its position as a versatile solution in global grain processing markets.
