Designed to address the needs of small to medium-scale farmers and rural cooperatives, these mobile units eliminate the need for fixed infrastructure, enabling flexible drying operations directly in fields or at collection points. The 5HYAN-3 model offers a daily processing capacity of over 20 tons for corn and 30 tons for wheat and rice, while the larger 5HPAN-5 extends this capability to handle higher volumes with enhanced efficiency.
Equipped with a towable design, these machines can be easily transported between locations at a maximum speed of 20 km/h, ensuring quick deployment during peak harvest seasons. The compact dimensions in transport mode (5400mm × 2400mm × 3400mm) allow access to remote farming areas where traditional drying equipment cannot reach.
Both models utilize a mixed-flow drying principle that circulates heated air through grain layers in multiple directions, achieving uniform moisture removal with a crack rate of less than 0.5%. This gentle drying process preserves grain integrity, maintaining higher quality standards for both food and seed grains.
A sliding valve discharge mechanism allows infinitely variable control over grain flow rates, adapting to different moisture levels and grain types. This system minimizes grain damage during discharge, ensuring that processed grains retain their market value.
The drying system can be configured with either coal-fired or gas-fired heat exchangers. The coal-based system offers economical operation with a standard coal consumption of 60-230 kg/h, while the optional gas-fired system provides cleaner operation meeting environmental regulations in sensitive areas.
With a total installed power of 8.05 kW (actual operating power around 2.5 kW), the 5HYAN-3 model delivers exceptional energy efficiency. The heat exchanger achieves over 85% thermal efficiency, converting fuel energy into effective drying heat with minimal waste.
Perfect for immediate post-harvest drying in fields, these mobile units prevent grain spoilage during periods of high humidity or unexpected rainfall. Farmers can dry grains to safe storage moisture levels (12-14% for most cereals) directly after harvest, preserving crop value.
Rural grain buyers and cooperatives use these machines to process incoming grain batches, ensuring consistent moisture levels before further transportation or storage. The mobility allows operators to serve multiple collection points with a single unit.
In regions prone to unpredictable weather, the 5HYAN-3/5HPAN-5 series provides emergency drying capacity, preventing crop loss during wet seasons. Their quick setup time (less than 2 hours from arrival to operation) ensures timely response to drying needs.
The equipment is versatile enough to handle various grains including paddy rice, wheat, corn, soybeans, rapeseed, and oilseeds. The drying parameters can be adjusted for different grain characteristics, with specific settings optimized for each grain type.
The mobile chassis features heavy-duty tires and suspension systems designed for rural roads. The towing hitch is compatible with standard agricultural tractors, and the machine's center of gravity is lowered during transport to ensure stability on uneven surfaces.
Daily maintenance includes cleaning the air filters and inspecting the fuel supply system. The heat exchanger should be cleaned weekly to maintain thermal efficiency. Major components such as the fan motor and conveyor systems require quarterly inspections, with annual replacement of wear parts like seals and gaskets.

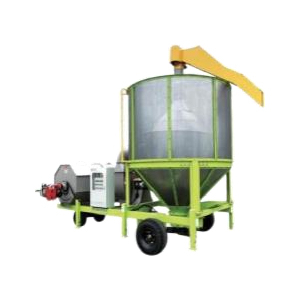

5HYAN-3 |

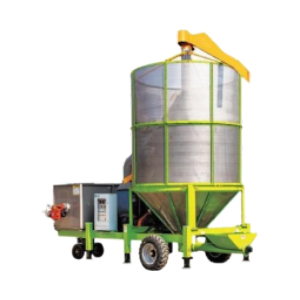

5HPAN-5 |
Main technical parament
Model | 5HYAN-3 | 5HPAN-5 |
Dimension(mm)L*W*H | 4200*2200*3930 | 4700*2200*5200 |
Moisture reduction rate(%/h) | 1.8-3.0 | 1.8-3.0 |
Power(kw) | 11.6 | 18.3 |
Capacity(t) | 2.6-3 | 4.5-5 |
The structural form | batch recirculator | batch recirculator |
Drying process | cross-mixed flow | cross-mixed flow |
Drying method | direct heating/indirect heating | direct heating/indirect heating |
Heat power(kj/h) | 1260000 | 1260000 |
